When building or using a battery system, one of the most fundamental questions is how batteries should be connected. Batteries can be connected in series or in parallel, and each configuration changes how voltage, current, and overall performance behave. Understanding the difference between series and parallel connections is essential for designing safe, efficient, and reliable battery systems across a wide range of applications.

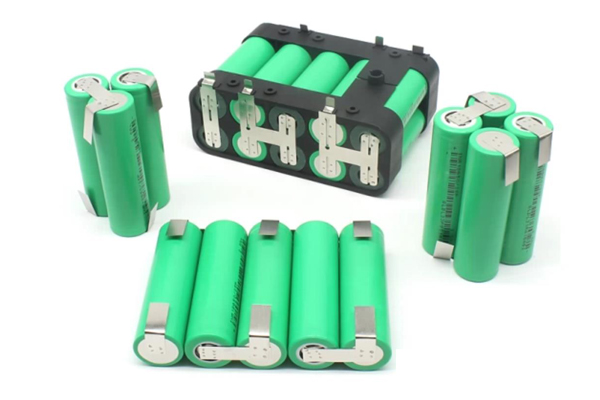

Batteries in Series

• Capacity in Battery Series
When batteries are connected in series, the total capacity of the battery string does not increase. The overall capacity is limited by the battery with the smallest amp-hour (Ah) rating. Even though multiple batteries are used, the system behaves as if it were a single battery with the same capacity as the weakest cell. This means that usable energy is constrained by the lowest-capacity battery, and the entire pack will reach charge or discharge limits based on that cell rather than the sum of all batteries. or example, in a 3S1P lithium battery configuration, three 3.7V 2600 mAh cells are connected in series. The total voltage increases to 11.1V, while the capacity remains the same at 2600 mAh. This type of configuration is commonly used when higher system voltage is required without increasing capacity.

• Voltage in Battery Series
In a series connection, battery voltages add together directly. For example, two 6V batteries connected in series form a 12V system, while four 12V batteries can be combined to create a 48V system. This is the primary reason series connections are used in higher-voltage battery systems. According to series connections increase voltage, the increase in voltage occurs without increasing capacity, which fundamentally changes how the system interacts with loads and charging equipment.

• Current Characteristics in Battery Series
The current flowing through a series battery string is the same through every battery. Because current does not divide in a series circuit, the maximum allowable current is limited by the battery with the lowest current rating. If one battery cannot safely handle the required current, it becomes a bottleneck for the entire system. In lithium battery applications, this can lead to excessive heating and accelerated degradation of weaker cells when high current is demanded.

• Formula and Calculator Logic for Battery Series
The behavior of batteries in series can be described using simple formulas. Total voltage is calculated as the sum of individual battery voltages, while total capacity remains unchanged. Energy is determined by multiplying total voltage by capacity (Wh = V × Ah). Runtime can then be estimated by dividing total energy by load power. These formulas are commonly used in battery calculators to estimate operating time and system requirements, and they apply consistently across battery chemistries.

• Battery Life Impact in Series Connections
Battery life in a series configuration is strongly affected by cell consistency. Differences in capacity, internal resistance, or aging cause individual batteries to reach charge and discharge limits at different times. Over time, this imbalance can lead to repeated over-discharge or over-charge of specific batteries, reducing overall lifespan. For li-ion battery packs, proper balancing and protection are critical to maintaining long-term reliability in series connections.

• Different Capacity Batteries in Series
Connecting batteries with different capacities in series is generally discouraged. Although the system voltage will still add up correctly, the smallest-capacity battery will determine the usable capacity of the entire string. During operation, this battery reaches its limits earlier than others, increasing the risk of over-discharge or over-charge. In lithium battery systems, repeated imbalance of this kind can cause permanent damage, safety risks, or failure of the battery pack.

• Charging Batteries in Series
Charging batteries connected in series requires a charger capable of supplying the total system voltage. For example, a 12V battery system built from two 6V batteries in series must be charged using a charger designed for the higher combined voltage. According to series battery charging requires higher charger voltage, series connections increase voltage without changing capacity, meaning charging equipment must match the total system voltage rather than individual battery voltage. While this principle applies to lithium, lead-acid, and NiMH batteries alike, lithium-ion systems additionally require proper balancing to prevent uneven charging between cells.
(Source: Battery University – Series and Parallel Battery Configurations)

• Runtime and Running Behavior in Series Systems
In real-world operation, series battery systems are commonly used where higher voltage is required to reduce current and improve efficiency. While runtime is determined by total energy rather than voltage alone, higher voltage systems often experience lower resistive losses under load. However, during extended operation, imbalance between batteries can gradually affect performance, making monitoring and protection essential for stable long-term running.

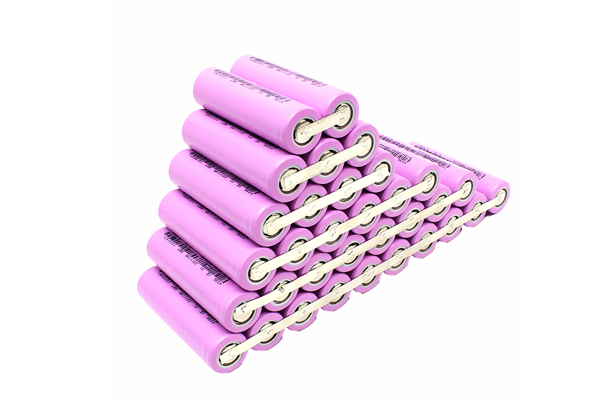

Batteries in Parallel

• Capacity in Battery Parallel
When batteries are connected in parallel, the total capacity of the battery system increases. The combined capacity is the sum of the individual battery capacities, allowing the system to store more energy at the same voltage level. For example, two 10Ah batteries connected in parallel form a 10V system (assuming identical voltage) with a total capacity of 20Ah. This is why parallel configurations are commonly used when longer runtime is required without increasing system voltage.

• Voltage in Battery Parallel
In a parallel connection, the system voltage remains the same as the voltage of a single battery. Unlike series connections, voltage does not add up when batteries are connected in parallel. According to parallel connections keep voltage constant, the voltage stability of parallel systems makes them suitable for applications where operating voltage must remain fixed while energy capacity is expanded.

• Current Characteristics in Battery Parallel
Parallel battery connections increase the total current capability of the system. When a load is applied, the current demand is shared among the batteries rather than flowing through a single unit. Ideally, each battery supplies an equal portion of the total current, reducing stress on individual cells. This makes parallel configurations well suited for high-current applications, provided the batteries are properly matched in capacity and internal resistance.

• Formula and Calculator Logic for Battery Parallel
Battery behavior in parallel configurations follows straightforward calculation rules. Total voltage remains unchanged, while total capacity is calculated by summing individual capacities. Total energy is determined using Wh = V × Ah, where Ah represents the combined capacity. Runtime can be estimated by dividing total energy by load power. These relationships are widely used in battery calculators to predict operating time and current distribution in parallel systems.

• Battery Life Impact in Parallel Connections
Parallel connections can positively affect battery life by reducing the current load on individual batteries. Lower per-battery current results in reduced heat generation and slower degradation under normal conditions. However, long-term battery life depends heavily on proper matching. Differences in internal resistance or aging can cause uneven current sharing, leading to accelerated wear of certain batteries within the parallel group.

• Different Capacity Batteries in Parallel
Connecting batteries with different capacities in parallel is generally not recommended, especially in lithium battery systems. Differences in capacity and internal resistance cause unequal current distribution, where one battery may supply or absorb more current than others. According to unequal batteries in parallel cause current imbalance, this imbalance can result in overheating, rapid degradation, or safety risks. In li ion batteries, such conditions may lead to thermal runaway, fire, or permanent damage to the battery pack.

• Charging Batteries in Parallel
Charging batteries in parallel does not require an increase in charger voltage, as the system voltage remains unchanged. However, because total capacity is higher, charging with the same current will extend the overall charging time. According to parallel battery charging increases required charge time, the charger must supply sufficient current for the combined capacity of the battery bank. While this charging principle applies to lithium, lead-acid, and NiMH batteries, lithium systems require additional protection to prevent imbalance during prolonged charging cycles.

• Runtime and Running Behavior in Parallel Systems
In real-world operation, parallel battery systems are widely used to extend runtime while maintaining stable voltage. By distributing current across multiple batteries, parallel configurations reduce voltage drop under load and improve system stability. However, during extended running conditions, small differences between batteries can become more pronounced over time, making monitoring and protection essential for consistent performance and long-term reliability.

Batteries in Series vs Parallel

• Capacity Comparison: Series vs Parallel
The most fundamental difference between series and parallel battery connections lies in how capacity behaves. In a series configuration, total capacity does not increase and is limited by the battery with the smallest capacity. In contrast, a parallel configuration increases total capacity by summing the individual battery capacities. This means series connections prioritize voltage requirements, while parallel connections are better suited for extending runtime at a fixed voltage.
(Source: Battery University – Series and Parallel Battery Configurations)

• Voltage Behavior: Series vs Parallel
Voltage behaves differently depending on the connection method. In a series connection, battery voltages add together, allowing systems to reach higher operating voltages such as 12V, 24V, or 48V. In a parallel connection, voltage remains unchanged and matches the voltage of a single battery. According to series connections increase voltage while parallel connections keep voltage constant, this distinction directly determines system compatibility with loads and chargers.
(Source: Battery University – Series and Parallel Battery Configurations)

• Current Characteristics and Distribution
Current flow is another key distinction between series and parallel systems. In series connections, the same current flows through every battery, meaning the entire system is limited by the lowest current-rated battery. In parallel connections, current is shared among batteries, increasing total current capability and reducing stress on individual units. This makes parallel configurations more suitable for high-current applications when batteries are properly matched.

• Formula and Calculator Logic
Battery calculators apply different formulas depending on whether batteries are connected in series or parallel. For series connections, total voltage is calculated by summing individual voltages, while capacity remains unchanged. For parallel connections, voltage remains constant and capacity is calculated by summing individual capacities. In both cases, total energy is calculated using Wh = V × Ah, and runtime is estimated by dividing total energy by load power. These calculation rules are consistent across battery chemistries and are widely used in system design tools.

• Runtime and Running Behavior
Runtime in both series and parallel systems depends primarily on total stored energy rather than voltage alone. Series systems often operate more efficiently at higher voltages due to lower current and reduced resistive losses, while parallel systems extend runtime by increasing total capacity. During real-world running conditions, series systems require careful balancing to maintain stability, whereas parallel systems rely on even current sharing to sustain long-term performance.

• Battery Life Considerations
Battery life is influenced differently in series and parallel configurations. In series systems, imbalance between batteries can cause certain cells to reach charge or discharge limits earlier, accelerating degradation. In parallel systems, uneven current sharing caused by differences in internal resistance or aging can also reduce lifespan. According to battery imbalance shortens battery life in both series and parallel systems, proper matching and protection are essential regardless of configuration.

• Different Capacity Batteries: Series vs Parallel
Using batteries with different capacities introduces risks in both configurations, but the mechanisms differ. In series connections, the smallest-capacity battery limits the usable capacity of the entire string and is more likely to experience over-discharge or over-charge. In parallel connections, capacity and resistance differences cause uneven current distribution, which may lead to overheating and accelerated failure. In lithium battery systems, both scenarios significantly increase safety risks and are generally discouraged.

• Charging Batteries: Series vs Parallel
Charging requirements differ significantly between series and parallel battery systems. Series-connected batteries require chargers capable of supplying the combined system voltage, while parallel-connected batteries can be charged at the same voltage as a single battery. However, because parallel systems have higher total capacity, charging with the same current results in longer charging times. According to charging requirements depend on series or parallel configuration, these principles apply to lithium, lead-acid, and NiMH batteries alike, although lithium systems require additional balancing and protection.

• Summary: Choosing Series or Parallel
Series connections are typically chosen when higher system voltage is required, while parallel connections are preferred when longer runtime or higher current output is needed at a fixed voltage. Each configuration has inherent advantages and risks, and proper battery matching, protection, and charging strategy are essential for safe and reliable operation.

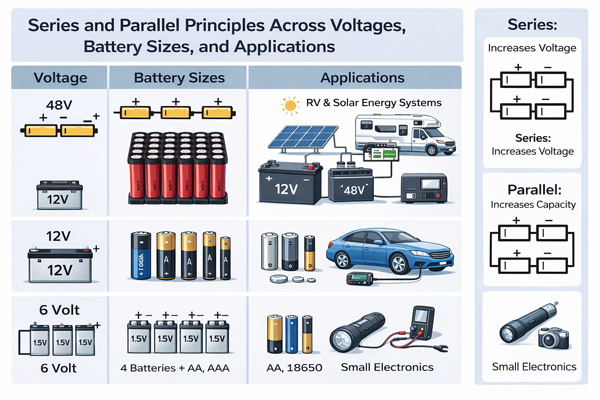

Series and Parallel Principles Apply Across Battery Types

The basic principles of battery series and parallel connections remain the same regardless of system voltage, battery size, or application. Whether batteries are combined to form common voltages such as 6V, 12V, or 48V, or whether the system uses small cells like AA and AAA batteries or larger cylindrical cells such as 18650, the behavior of voltage, capacity, and current follows the same fundamental rules. These connection methods are widely used across different applications, including automotive, RV, and solar power systems, as well as with various battery types such as AGM and lithium batteries. While real-world designs may vary based on application requirements, the underlying series and parallel connection principles do not change.

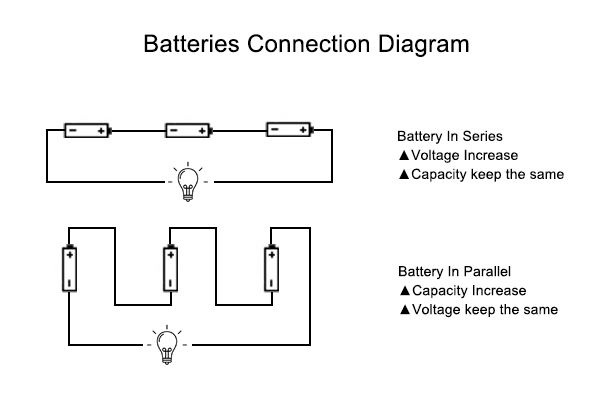

Battery Wiring Band Connection Diagrams

Before comparing series and parallel configurations, it is important to understand how batteries are physically connected in a circuit. Battery wiring diagrams are commonly used to show how individual batteries are connected using conductors to form a complete electrical circuit. These diagrams help illustrate connection points, current paths, and polarity, making it easier to visualize how a battery system is assembled. Whether batteries are connected in series or in parallel, correct wiring and secure connections are essential to ensure stable operation and to avoid issues such as high resistance, overheating, or unintended short circuits.

Conclusion

Series and parallel battery connections follow clear and consistent electrical principles that determine how voltage, capacity, current, and runtime behave in a battery system. Series connections are primarily used to increase system voltage, while parallel connections are used to increase capacity and current capability at a fixed voltage. Although these configurations are applied across different battery types, sizes, voltages, and applications, the underlying rules remain the same. Understanding these principles helps ensure proper system design, safe operation, and long-term battery reliability, especially in applications involving lithium batteries where matching, protection, and correct charging are critical.

FAQ

What is the difference between batteries in series and parallel?
Batteries connected in series increase total voltage while capacity remains the same. Batteries connected in parallel keep voltage unchanged but increase total capacity and current capability.

Does connecting batteries in series increase capacity?
No. In a series connection, capacity does not increase. The total usable capacity is limited by the battery with the smallest capacity.

Does connecting batteries in parallel increase voltage?
No. In a parallel connection, voltage remains the same as a single battery. Only capacity and current capability increase.

Can batteries with different capacities be connected together?
It is not recommended. In series, the smallest-capacity battery limits the entire system. In parallel, differences in capacity and internal resistance can cause current imbalance and safety risks.

How do you calculate voltage and capacity in series or parallel?
In series, total voltage is the sum of individual voltages and capacity stays the same. In parallel, voltage stays the same and total capacity is the sum of all batteries. Energy is calculated as Wh = V × Ah.

How does charging differ between series and parallel batteries?
Series-connected batteries require a charger matching the higher combined voltage. Parallel-connected batteries use the same voltage charger, but charging time increases due to higher total capacity.
