Battery performance is one of the biggest considerations when choosing an iPhone 17 model. Capacity matters, but real-world battery life also depends on power efficiency, display usage, software optimization, and charging behavior. Understanding how iPhone batteries perform over time can make it easier to compare the iPhone 17, iPhone Air, iPhone 17 Pro, iPhone 17 Pro Max, and iPhone 17e beyond the numbers alone.
This guide compares the battery capacity, battery life, charging specs, and real-world performance of every model in the iPhone 17 lineup.

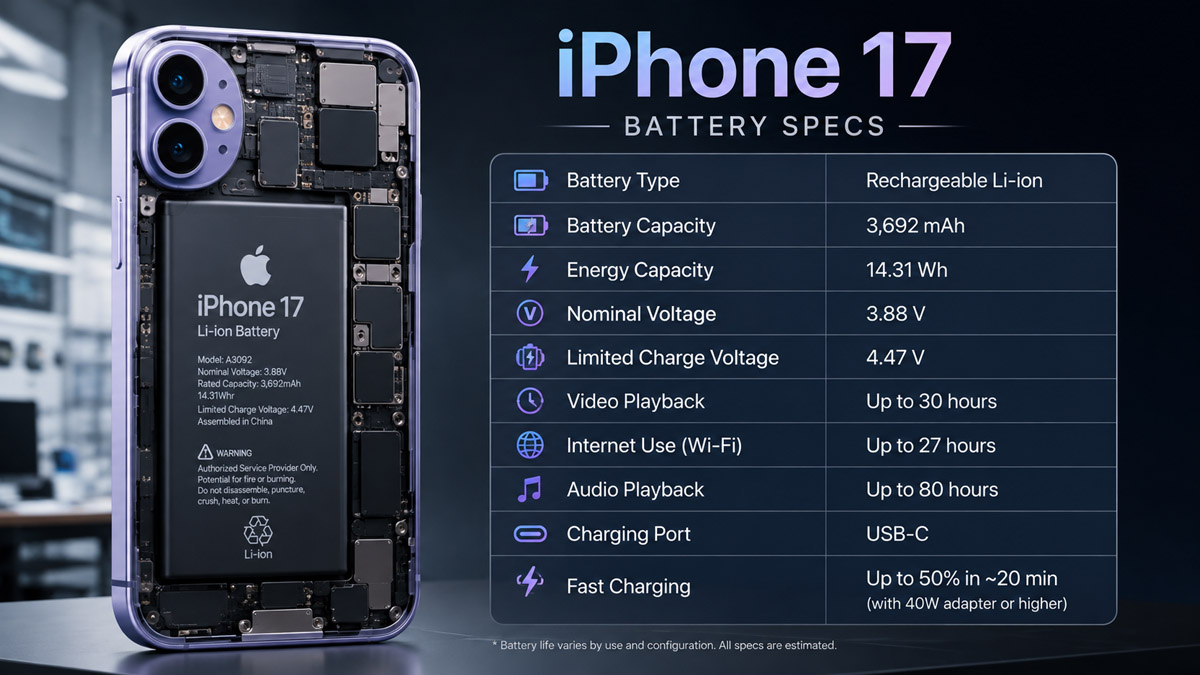

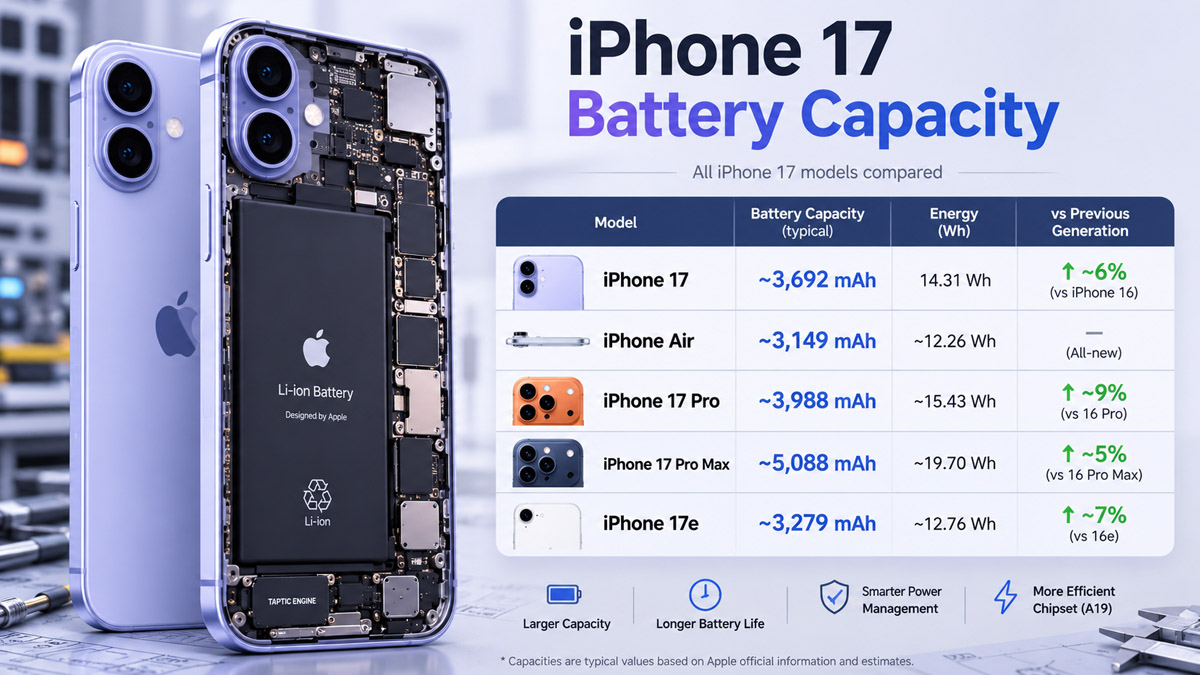

iPhone 17 Battery Specifications Comparison
Battery capacity is one of the easiest specifications to compare, but it does not fully represent battery performance. From a lithium-ion battery perspective, battery life also depends on energy density, device power consumption, thermal management, and charging efficiency.
The table below compares the key battery specifications of each iPhone 17 model.
| Model | Battery Capacity | Video Playback | Streamed Video Playback | Fast Charging | MagSafe / Qi2 Wireless Charging | Battery Type |
|---|---|---|---|---|---|---|
| iPhone 17e | 4,005 mAh | Up to 26 hours | Up to 21 hours | Up to 50% in 30 min with 20W+ adapter | Up to 15W | Rechargeable lithium-ion |
| iPhone 17 | 3,692 mAh | Up to 30 hours | Up to 27 hours | Up to 50% in 20 min with 40W+ adapter | Up to 25W | Rechargeable lithium-ion |
| iPhone Air | 3,149 mAh | Up to 27 hours | Up to 22 hours | Up to 50% in 30 min with 20W+ adapter | Up to 20W | Rechargeable lithium-ion |
| iPhone 17 Pro | 4,252 mAh | Up to 33 hours | Up to 30 hours | Up to 50% in 20 min with 40W+ adapter | Up to 25W | Rechargeable lithium-ion |
| iPhone 17 Pro Max | 5,088 mAh | Up to 39 hours | Up to 35 hours | Up to 50% in 20 min with 40W+ adapter | Up to 25W | Rechargeable lithium-ion |
A larger battery generally provides more stored energy, but it does not always mean proportionally longer battery life. Display efficiency, processor power consumption, modem activity, and software optimization all affect real-world runtime.
Phone design also matters. Larger models can usually accommodate bigger battery cells, while thinner models have less internal space. This makes energy density and battery packaging efficiency especially important when comparing different iPhone 17 models.
Charging speed should also be viewed together with heat management. Lithium-ion batteries charge fastest at lower states of charge, while charging power is gradually reduced near full capacity to limit heat and battery stress.

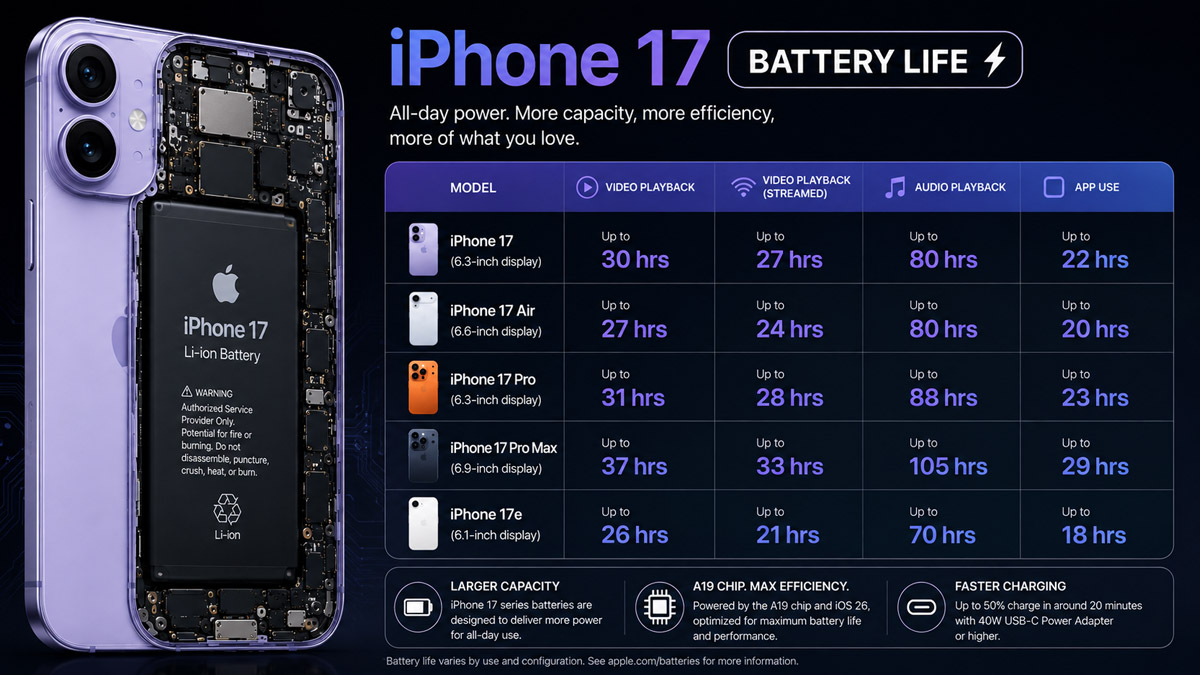

iPhone 17 Battery Life: How Long Does It Last?
Battery life is more useful to consumers than battery capacity alone. A larger lithium-ion battery stores more energy, but actual runtime also depends on the display, processor, cellular connection, software activity, temperature, and how efficiently the phone uses that energy.
Apple measures iPhone battery life mainly through video playback, while independent battery tests provide a better indication of continuous real-world use.
The table below compares the battery life of the iPhone 17, iPhone Air, iPhone 17 Pro, iPhone 17 Pro Max, and iPhone 17e, including Apple’s official video playback ratings and independent battery test results.
| iPhone 17 Model | Video Playback | Streamed Video | Real-World Battery Test* |
|---|---|---|---|
| iPhone 17e | Up to 26 hours | Up to 21 hours | 12 hr 35 min |
| iPhone 17 | Up to 30 hours | Up to 27 hours | 12 hr 47 min |
| iPhone Air | Up to 27 hours | Up to 22 hours | 12 hr 2 min |
| iPhone 17 Pro | Up to 33 hours | Up to 30 hours | 15 hr 32 min |
| iPhone 17 Pro Max | Up to 39 hours | Up to 35 hours | 17 hr 54 min |
Independent results use Tom’s Guide battery testing. The iPhone 17, Air, Pro and Pro Max were tested by continuously browsing the web over 5G with display brightness set to 150 nits. The iPhone 17e recorded 12 hours 35 minutes in Tom’s Guide testing.
Apple officially rates the iPhone 17 at up to 30 hours of video playback and the 17 Pro Max at up to 39 hours, while the iPhone 17e reaches up to 26 hours.
The iPhone 17 Pro Max clearly offers the longest battery life, followed by the 17 Pro. The standard iPhone 17 and 17e are relatively close in independent testing, while the ultra-thin iPhone Air has the shortest runtime.
From a battery perspective, these results also show why mAh does not equal battery life. Battery capacity determines how much charge can be stored, but power efficiency determines how quickly that stored energy is consumed.
Battery-life improvements across the iPhone 17 family are not the same for every model.
In Tom’s Guide testing, the iPhone 17 lasted 12:47, compared with 12:43 for the iPhone 16, so the improvement in continuous web browsing was very small. The iPhone 17 Pro improved from 14:07 to 15:32, while the Pro Max increased from 17:17 to 17:54.

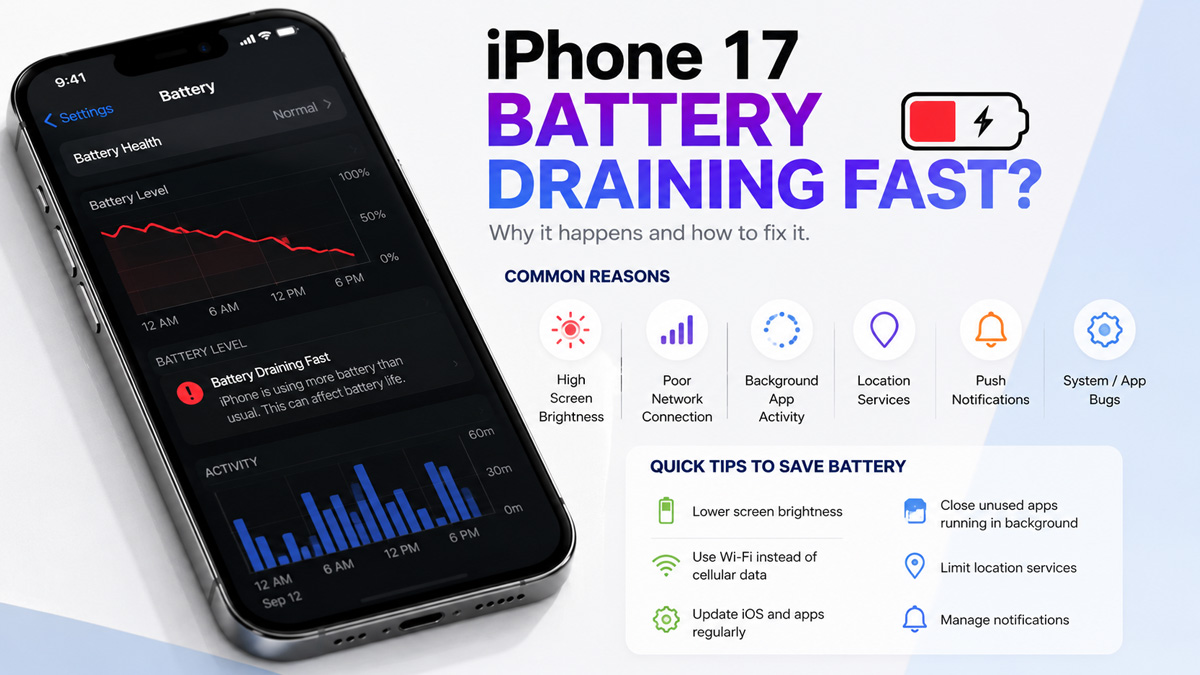

Fast battery drain does not necessarily mean the battery is defective. Common causes include:
- High screen brightness or long screen-on timeApple specifically notes that background activity, poor cellular coverage, high brightness, device setup and post-update processing can temporarily increase battery consumption.
If an iPhone 17 suddenly begins draining much faster than normal, check Settings > Battery first. The Battery page shows which apps and system activities are consuming the most energy and may also provide battery-saving suggestions.
For longer runtime between charges:
- Use Adaptive Power. It can automatically reduce power consumption when usage is higher than normal.
- Enable Low Power Mode when you need additional runtime.
- Reduce excessive screen brightness or enable Auto-Brightness.
- Use Wi-Fi when available, especially in areas with weak cellular coverage.
- Check Background Activity and limit apps consuming excessive power.
- Use 5G Auto instead of forcing 5G continuously.
- Avoid excessive heat, especially while gaming, recording video or charging.
Adaptive Power can adjust brightness, background activity and performance to extend runtime, while Low Power Mode reduces features such as background refresh, display brightness and some visual effects.
There is also a difference between battery life and battery lifespan. Battery life means how long the iPhone runs on one charge; battery lifespan refers to how long the lithium-ion cell maintains useful capacity over months and years. Avoiding excessive heat and using Apple’s charging optimization or Charge Limit features can help reduce long-term battery aging.
iPhone 17 Battery Health: How to Maintain It
Battery health describes how much of the battery’s original capacity remains as it ages. Unlike battery life, which measures how long the phone lasts on a single charge, battery health reflects long-term lithium-ion battery degradation.
To help maintain iPhone 17 battery health:
- Avoid excessive heat. High temperature is one of the main factors that accelerates lithium-ion battery aging.
- Use a charging limit when practical. Keeping the battery at 100% for long periods can increase long-term battery stress.
- Keep Optimized Battery Charging enabled. This reduces the time the battery spends fully charged.
- Partial charging is fine. You do not need to regularly drain the battery to 0% before charging.
- Avoid heavy use while the phone is hot or charging. Gaming, video recording, or other high-load tasks can add extra heat during charging.
From a battery perspective, temperature and time spent at a high state of charge are more important to long-term battery health than simply how often the phone is charged.
Conclusion
The iPhone 17 lineup offers different balances of battery capacity, battery life, charging, and device design. The iPhone 17 Pro Max delivers the longest runtime, while other models prioritize size, weight, or performance. For the best comparison, look at both battery capacity and real-world battery life rather than mAh alone.
FAQ
How Long Does the iPhone 17 Battery Last?
Apple rates the iPhone 17 for up to 30 hours of video playback and up to 27 hours of streamed video playback. In Tom’s Guide’s continuous web-browsing battery test, the iPhone 17 lasted 12 hours and 47 minutes. Actual battery life varies with screen brightness, network conditions, apps, gaming, camera use, and temperature.
How Long Does the iPhone 17 Pro Max Battery Last?
The iPhone 17 Pro Max offers the longest battery life in the iPhone 17 lineup. Apple rates it for up to 39 hours of video playback and 35 hours of streamed video playback. In Tom’s Guide testing, it lasted 17 hours and 54 minutes of continuous web browsing.
What Is the Battery Capacity of iPhone 17 Pro Max?
The iPhone 17 Pro Max has a battery capacity of up to 5,088 mAh in eSIM-only versions. Models with a physical SIM tray use a smaller 4,823 mAh battery because part of the internal space is required for the SIM hardware.
How to Save Battery on iPhone 17?
To save battery on an iPhone 17, reduce excessive screen brightness, use Wi-Fi when possible, limit unnecessary background activity, and turn on Low Power Mode when additional runtime is needed. Checking Settings > Battery can also help identify apps using unusually large amounts of power.
Why Is My iPhone 17 Battery Draining So Fast?
Fast battery drain can be caused by high screen brightness, background app activity, weak cellular coverage, heavy 5G use, location services, gaming, or high temperatures. Battery consumption may also temporarily increase after setting up a new iPhone or updating iOS because the phone can continue processing tasks in the background. Check Settings > Battery to see which apps or system activities are consuming the most power.
