Lithium battery creates electric current through a carefully designed chemical reaction that takes place inside its sealed case. At its core, a battery contains two different materials—the anode (negative terminal) and the cathode (positive terminal)—along with an electrolyte that allows ions to move between them. These materials are chosen because they naturally want to exchange electrons due to their different chemical energies. This difference generates a voltage, which you can think of as an electrical “pressure” that encourages electrons to move. In a typical lithium-ion cell, this chemical potential difference corresponds to about 3.6 V of electrical potential per cell, roughly 1.5–3 times the voltage of many older rechargeable chemistries such as nickel-cadmium and lead-acid batteries. When no device is connected, this “pressure” simply waits inside the battery. But the moment a circuit is completed—by plugging the battery into a flashlight, remote control, or any electronic device—electrons begin to flow from the anode, through the external circuit, and toward the cathode. This movement of electrons is what we call electric current.
The fascinating part is that the battery is not pushing electrons by mechanical force; instead, it is converting stored chemical energy into electrical energy. Each time electrons leave the anode, chemical reactions inside the battery work to replace them. Meanwhile, positively charged lithium ions inside the electrolyte travel from the anode to the cathode (during discharge) to keep charge balanced, passing through a separator that blocks electrons but allows ions through. As long as the internal chemistry continues to operate, the battery can provide a steady and reliable current. Eventually, when the reactants inside are used up or the voltage falls below a usable level, the battery can no longer maintain its voltage and the current stops—this is what we recognize as a “dead” battery. Whether it’s powering your phone, a toy, or a small household device, the same fundamental process is at work: controlled chemical reactions creating a continuous flow of electrons that brings your electronics to life.

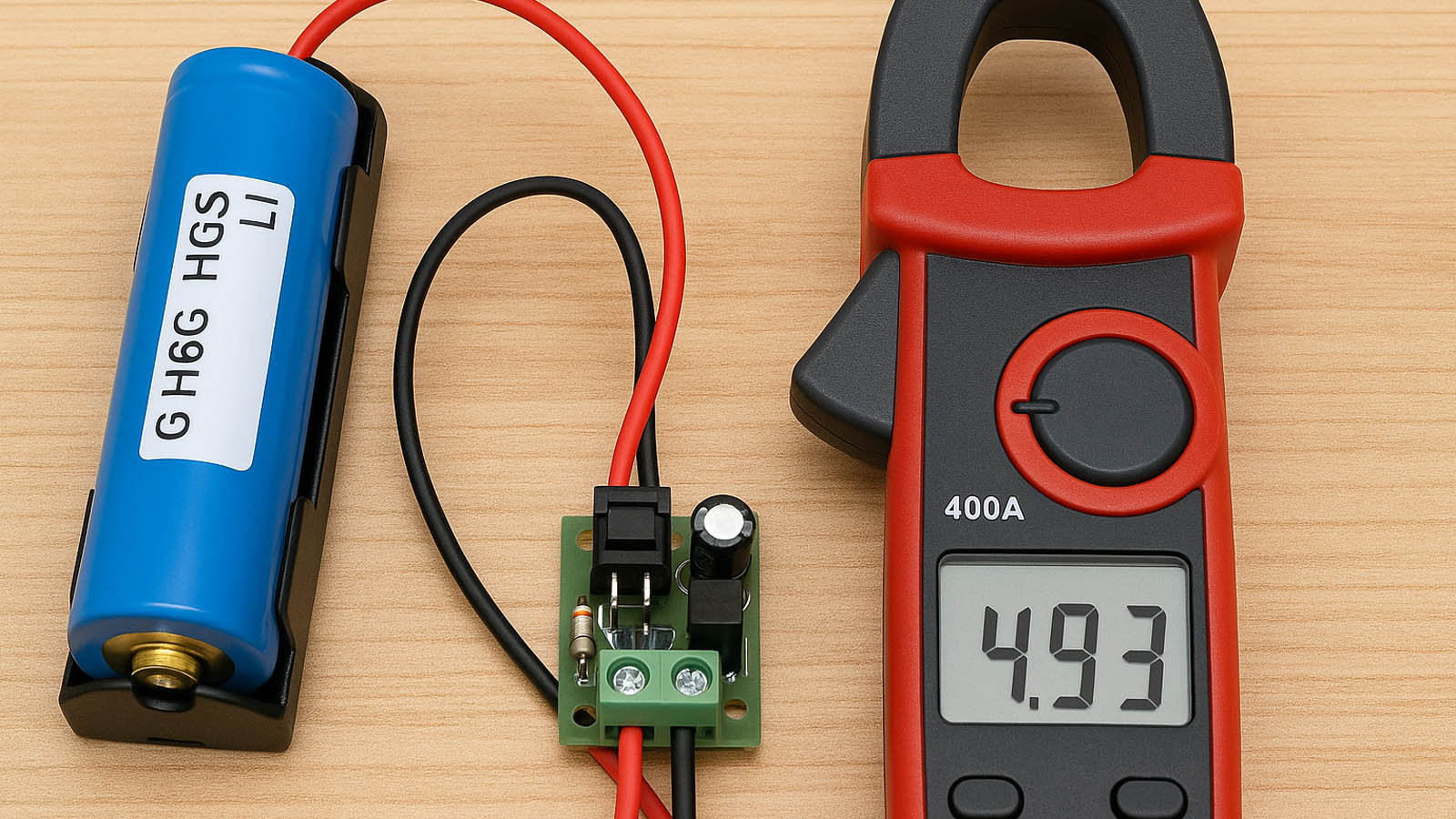

Maximum Current of Lithium Batteries
When people ask how much current a battery can actually supply, lithium cells usually stand out from the rest. High-quality lithium-ion battery and LiPo packs are designed for relatively high discharge currents, often rated in terms of a C-rate. For example, a 2500 mAh 18650 cell rated at 2C can safely deliver around 5 A continuously, while performance-oriented LiPo packs for RC models or drones may support much higher C-rates for short bursts. The key point is that lithium-ion battery combine high energy density with low internal resistance, which allows them to provide strong current output without a dramatic voltage drop, as long as they stay within the manufacturer’s specified current limit.
Compared with lithium technology, other common battery types are usually more limited. Standard 1.5 V AA and AAA alkaline cells are optimized for low to medium drain devices and are not meant to supply several amps for long periods. Small 9 V batteries are even more restricted: despite the higher nominal voltage, their internal resistance is relatively high, so the maximum usable current is quite low. On the opposite side, large 12 V AGM lead-acid batteries can deliver very high currents, but they are heavy and have much lower energy density than lithium packs. NiMH rechargeables sit somewhere in between—they can handle higher currents than alkaline AA/AAA cells, but typically cannot match the power-to-weight performance of good lithium-ion or LiPo cells.
Charging current also has to be controlled carefully, especially for lithium chemistry. Most lithium-ion and LiPo batteries specify a recommended charge current limit such as 0.5C or 1C, and going beyond this can cause excessive heat, faster capacity loss, or safety risks. Other chemistries like AGM and NiMH also have their own charge-rate limits, but lithium cells are particularly sensitive and must be charged with a proper charger and correct settings. In practice, the real answer to “How much current can this battery supply or produce?” always comes back to the datasheet: for lithium batteries in particular, respecting the rated maximum charging and discharging currents is essential for both performance and safety.

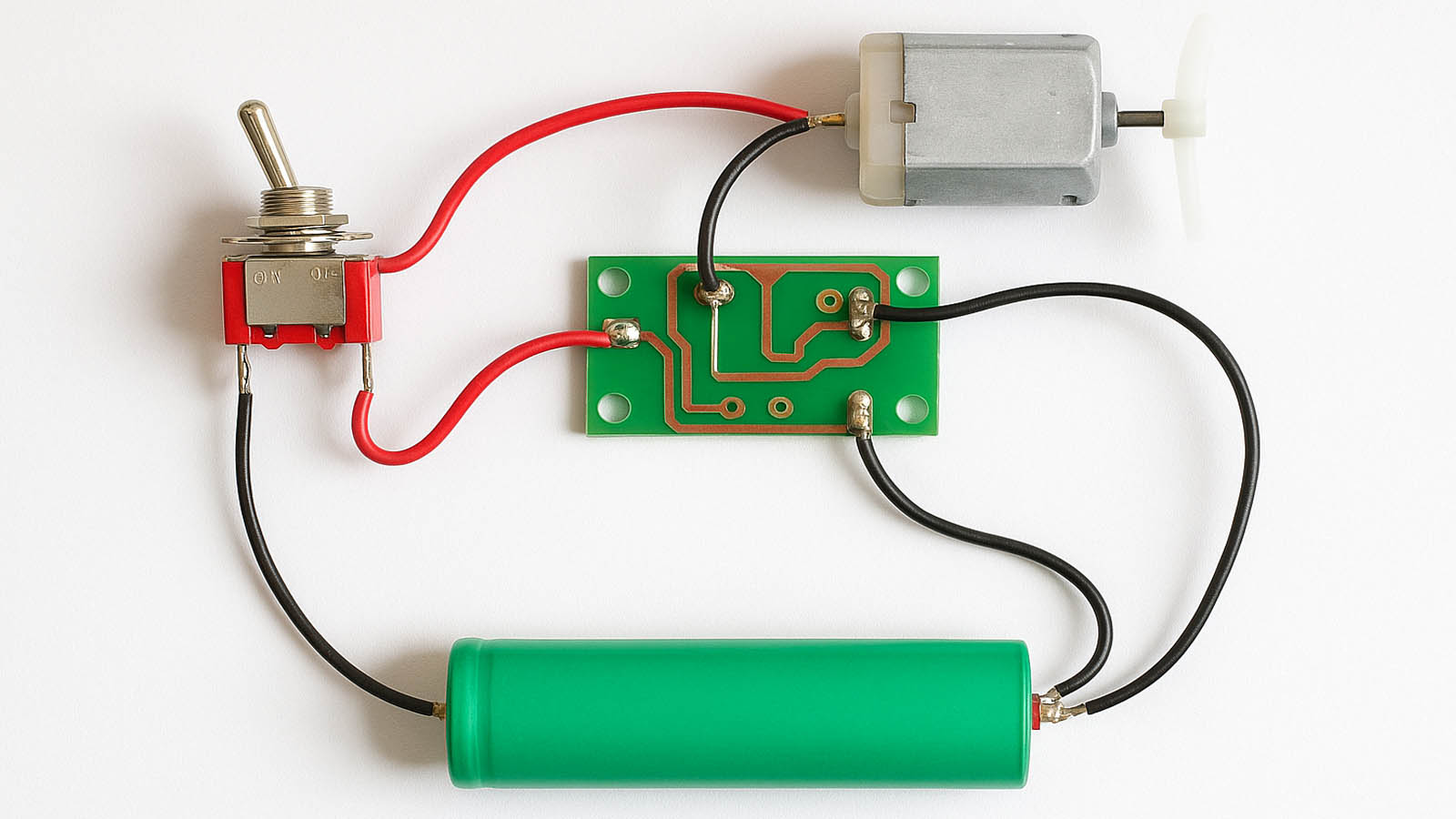

Lithium Battery Rated Current
For lithium batteries, the rated current is one of the most important parameters to understand, because it tells you how much current the cell can safely deliver or accept under normal conditions. In lithium-ion 18650 cells and LiPo packs, the discharge rating is often given as a C-rate (for example, 1C, 2C, 20C), which links directly to the capacity of the battery. A 2000 mAh cell rated at 1C can continuously supply 2 A, while the same cell rated at 5C could theoretically provide up to 10 A continuous discharge. Many lithium batteries also specify a continuous current and a separate peak or burst current, where the burst value can be higher but only for a short time to avoid overheating and damage. On the charging side, the rated charge current is usually lower than the discharge rating, and common recommendations are in the range of 0.5C to 1C for long life and safe operation. Exceeding the rated current, whether in charging or discharging, can lead to excessive temperature rise, faster capacity loss, or in extreme cases, serious safety hazards such as venting or thermal runaway.
Although this concept is especially critical for lithium batteries because of their high energy density and stricter safety requirements, other chemistries also have rated currents that should be respected. NiMH rechargeables, AGM lead-acid batteries, and even standard alkaline AA, AAA, or 9 V cells all come with manufacturer-defined limits for continuous and peak current. These non-lithium types are generally more tolerant of mild misuse but still suffer from shortened lifespan, voltage sag, or overheating if their rated currents are ignored.

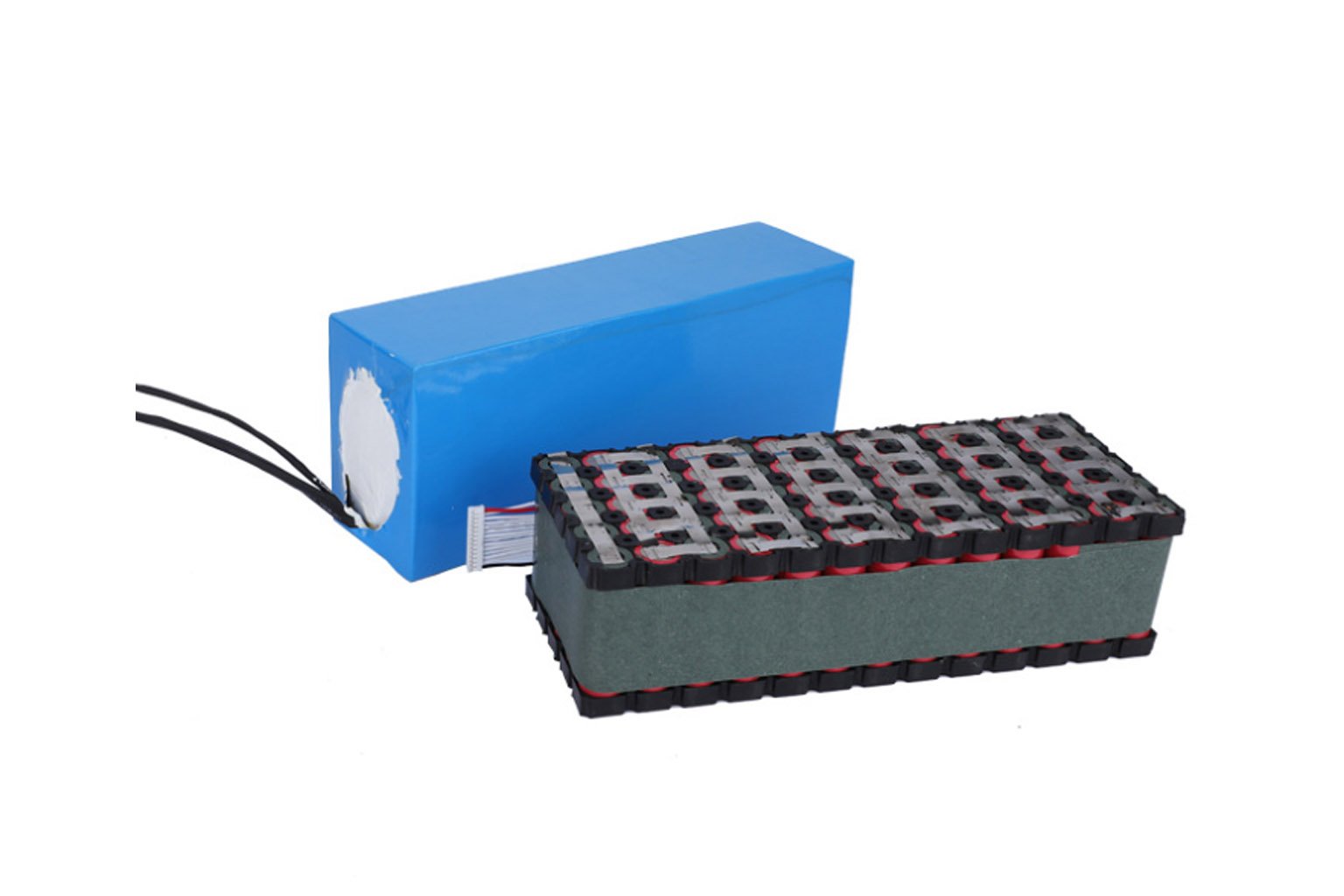

How Series and Parallel Connections Affect Lithium Battery Current
Lithium batteries are connected in series, the main effect is on voltage, not current. The total pack voltage is the sum of all cell voltages, but the current rating and capacity (Ah) remain essentially the same as a single cell (assuming identical cells). For example, three 3.7 V, 3000 mAh lithium-ion cells in series form an 11.1 V, 3000 mAh pack. If each cell is rated for 10 A continuous discharge, the series pack is also used at about 10 A continuous, because the same current flows through every cell in the string. This is why series connections are chosen when you need a higher system voltage, such as 12 V, 24 V, or 36 V packs, without changing the basic current level per cell.
With parallel connections, the situation is reversed: the voltage stays the same, but capacity and available current increase. When identical lithium cells are wired in parallel, their capacities in ampere-hours add together, and so does the total current they can provide. Using the same example, three 3.7 V, 3000 mAh cells in parallel form a 3.7 V, 9000 mAh pack. If each cell can safely deliver 10 A, the combined pack can typically be used at around 30 A continuous, because the load current is shared among the parallel cells. This is why high-current applications, such as power tools or e-bike packs, often combine series for voltage and parallel for current (for example, a 3S2P or 10S4P configuration).
For lithium batteries, it is very important that cells used in series or parallel are the same type, capacity, and state of charge, and that the pack is managed by a suitable BMS (Battery Management System) for balancing and protection. Although the same basic series/parallel rules also apply to other chemistries like NiMH, AGM, or lead-acid packs, the requirements for matching cells and proper management are especially critical in lithium systems because of their higher energy density and stricter safety needs.

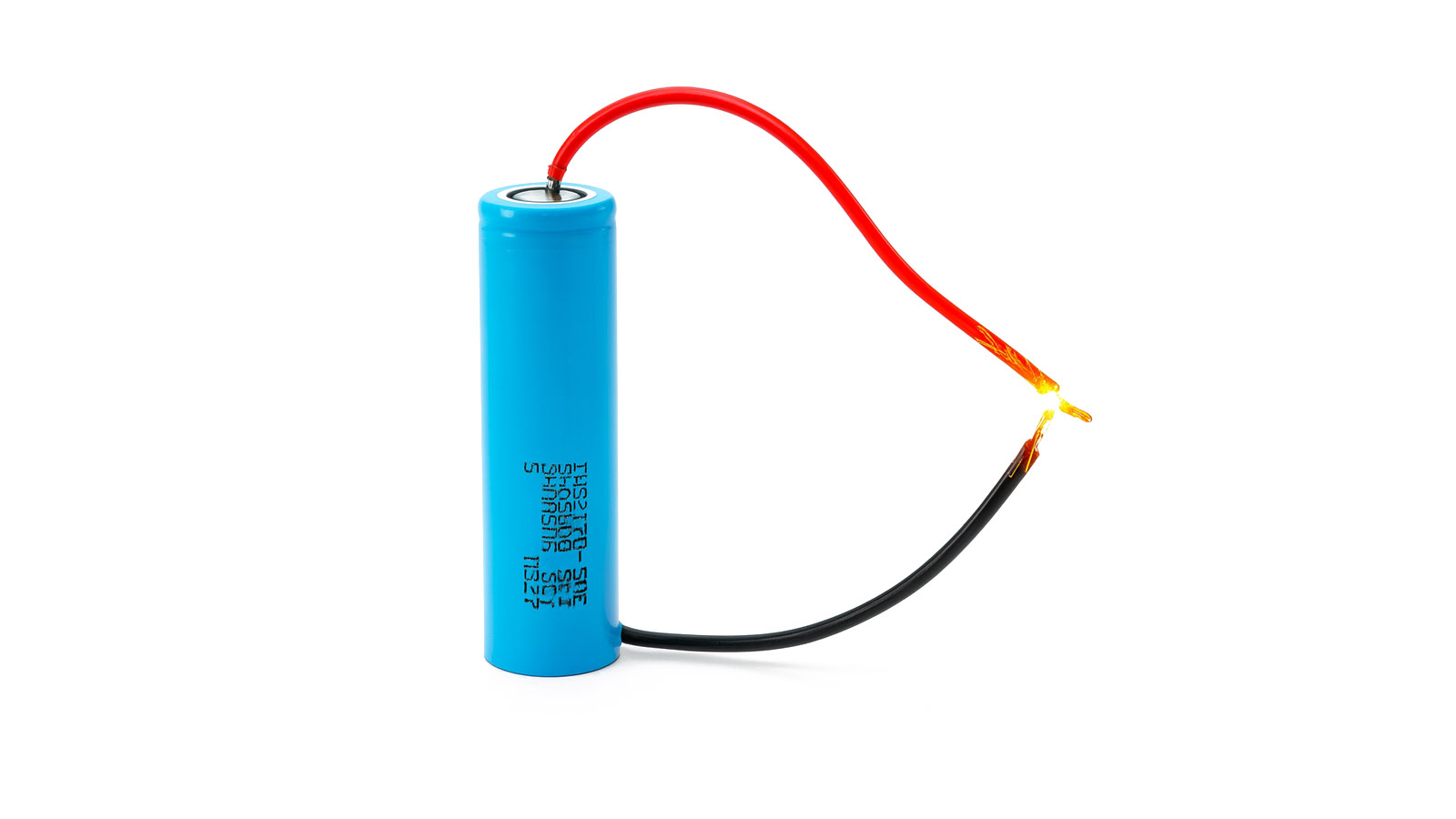

In any battery, short circuit current is the current that flows when the positive and negative terminals are connected with almost no resistance between them—essentially a direct “+ to –” connection. For lithium batteries, this situation is especially dangerous because they combine high voltage, low internal resistance, and high energy density. When a lithium-ion or LiPo pack is shorted, the current can rise to hundreds of amps in a fraction of a second. For a large pack, such as a 100 Ah lithium-ion battery with very low internal resistance, the short-circuit current can be thousands of amps before any protection circuitry or fuses trip. The voltage collapses, but the huge current turns the internal resistance of the cells, the conductors, and the shorting path into heat. This can quickly lead to melting insulation, damaged cells, venting, fire, or thermal runaway. For this reason, quality lithium packs are usually paired with a Battery Management System (BMS), fuses, or other protection devices designed to interrupt the circuit if a short is detected. Even with protection, intentionally short-circuiting a lithium battery is never safe or acceptable practice.
By comparison, a typical 12 V battery, such as a lead-acid car or AGM battery, can also deliver very high short-circuit currents—measurements show that a standard 12 V automotive battery can exceed 1,000 A in a dead short. This is powerful enough to weld tools, melt metal, and cause severe burns, which is why shorting a 12 V automotive battery is still extremely dangerous. However, these batteries are usually built in rigid cases with heavy terminals and are often installed in fixed positions, which slightly reduces the chance of accidental shorts compared with loose lithium packs and cells carried around in bags or toolboxes.
A small 9 V battery behaves differently again. Its internal resistance is relatively high, so the short circuit current is usually much lower—tests and modeling suggest that a 9 V alkaline or lithium battery can typically deliver only about 4.5–9 A in a momentary short. That said, a 9 V cell can still get very hot if shorted for a long time, and it can easily start to damage itself or nearby materials. A classic risk is a loose 9 V battery in a pocket or drawer that touches coins, keys, or metal objects, creating an unintentional short.
In summary, short circuit current is a danger for all battery chemistries, but it is particularly critical in lithium systems, where the combination of high energy density and low internal resistance can turn even a brief short circuit into a serious safety hazard.

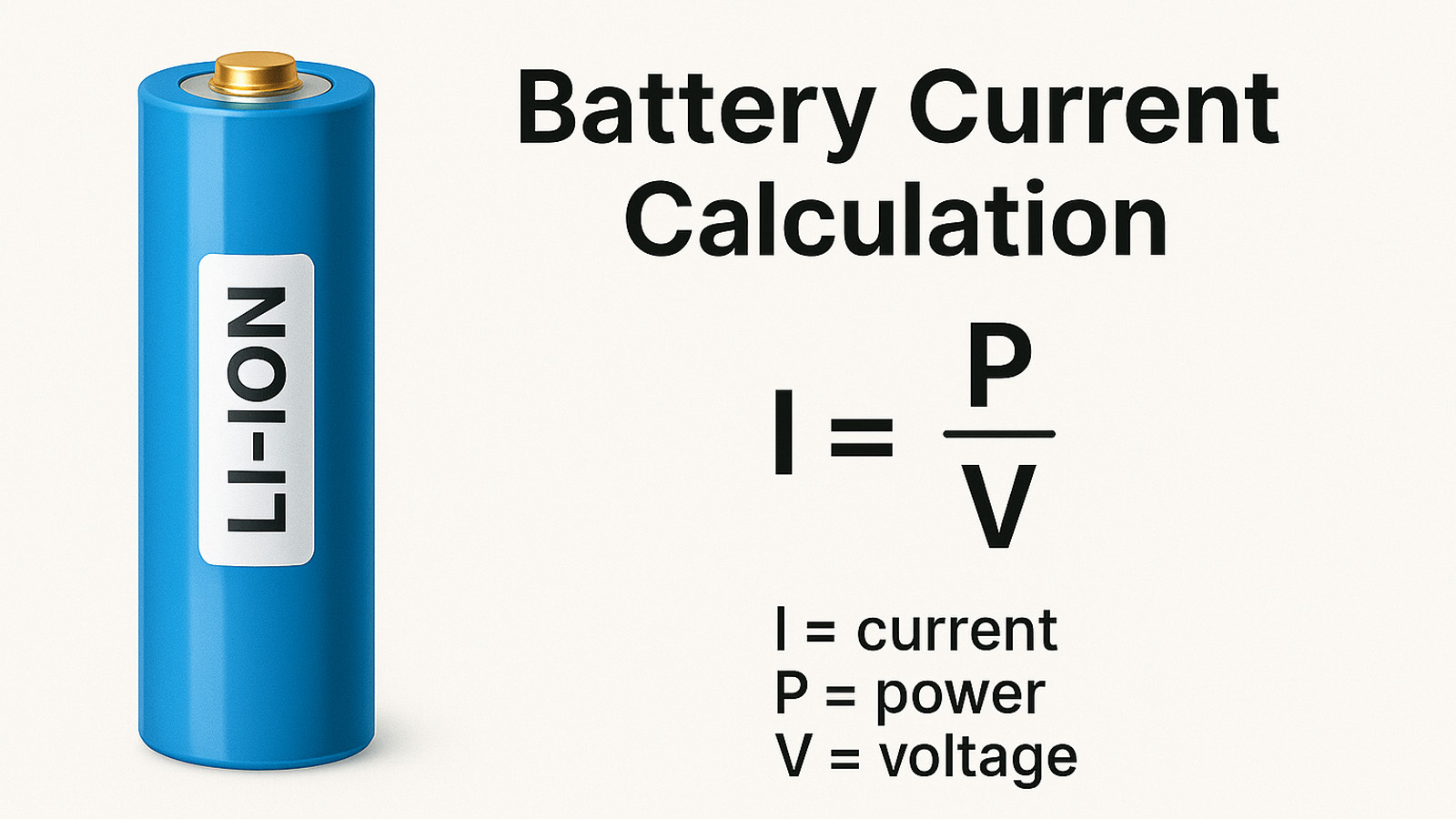

In summary, lithium batteries stand out because they can deliver high current from a relatively small and lightweight package, but that performance always comes with clear rules. The actual current depends on voltage, capacity, C-rate, and configuration: voltage is mostly set by how many cells you put in series, while available current and capacity grow when cells are placed in parallel. Rated current values for charge and discharge are there for a reason—they define the range in which the battery can work efficiently without overheating, aging too fast, or becoming unsafe. Simple formulas like Current = Capacity × C-rate and Current = Power ÷ Voltage make it easy to check whether a given pack can handle a certain load.
At the same time, short-circuit current is a reminder of how powerful these cells really are. Lithium packs can deliver enormous currents in a fault condition, which is why proper protection (BMS, fuses, correct wiring, and insulation) is essential. Other chemistries—NiMH, AGM, lead-acid, alkaline, 9 V blocks—follow the same basic electrical principles, but usually offer lower current for a given size and energy density. If you always design around the datasheet ratings, use correct series/parallel configurations, and respect the recommended charge and discharge currents, lithium batteries can provide safe, reliable, and long-lasting power for everything from small electronics to high-power tools and e-mobility systems.
