The 18650 battery is one of the most widely used lithium-ion cells, powering everything from consumer electronics to power tools and battery packs. As a common type of Lithium-ion battery technology, it benefits from decades of development and has become a core component in modern energy storage systems.
This guide covers everything you need to know about 18650 batteries, including voltage, capacity, discharge rate, lifespan, safety, and more. Whether you are selecting a battery, building a pack, or simply trying to understand how it works, it also helps to understand how different lithium batteries work and where 18650 cells fit within the broader category.
By understanding these key factors, you can choose the right battery, improve performance, and ensure safe operation in real-world applications.

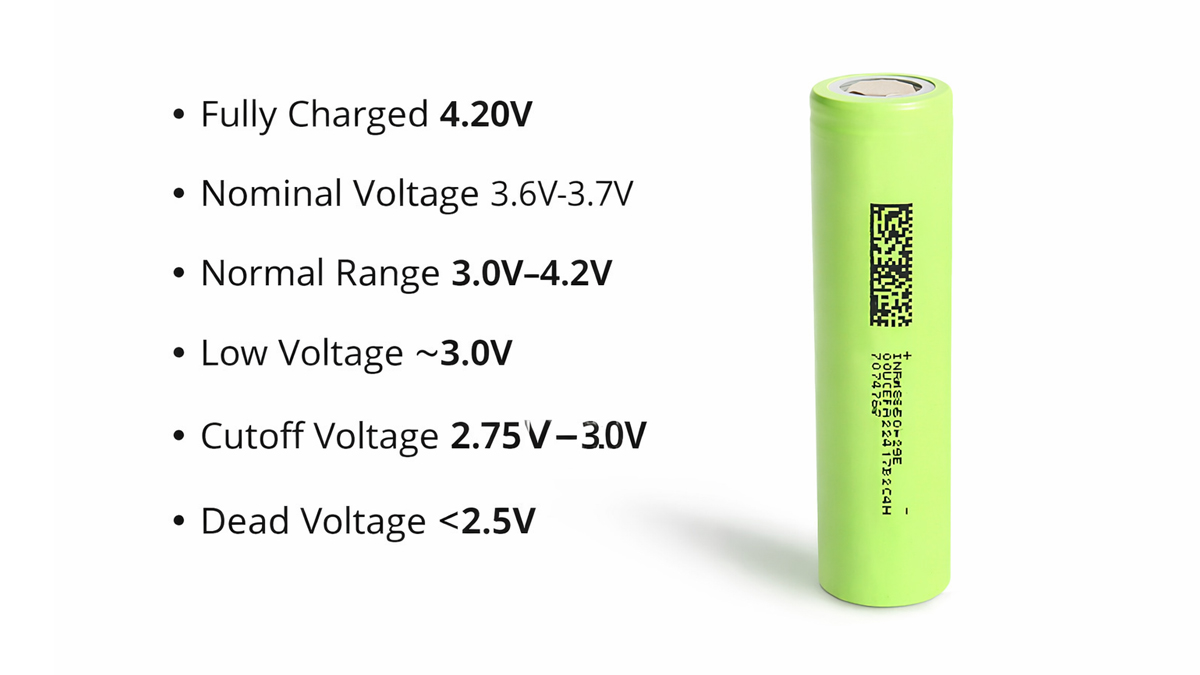

The voltage of a 18650 battery indicates its charge level and determines whether the battery is operating within a safe range. As the battery charges and discharges, the voltage rises and falls accordingly, from fully charged to empty. Understanding voltage limits is essential to avoid overcharging, over-discharging, and potential damage.
In general, a 18650 battery operates within a defined voltage range. It reaches about 4.2V when fully charged, works normally between 3.0V and 4.2V, and should not be discharged below around 2.5V–3.0V, where protection circuits typically cut off to prevent damage. If the voltage drops too low, the battery may become unstable or permanently degraded.
| Voltage Level | Value | Description |
| Fully Charged | 4.20V | Maximum voltage after charging |
| Nominal Voltage | 3.6V–3.7V | Standard operating voltage |
| Normal Range | 3.0V–4.2V | Typical working range |
| Low Voltage | ~3.0V | Battery is nearly empty |
| Cutoff Voltage | 2.75V–3.0V | Protection stops discharge |
| Dead Voltage | <2.5V | Risk of damage, may not recover |
| Resting Voltage (V) | Approx. Charge Level |
| 4.20V | 100% |
| 4.10V | ~90% |
| 4.00V | ~75–80% |
| 3.90V | ~60–65% |
| 3.80V | ~40–50% |
| 3.70V | ~20–30% |
| 3.60V | ~10–15% |
| 3.50V | ~5–10% |
| 3.30–3.40V | ~0–5% (near empty) |

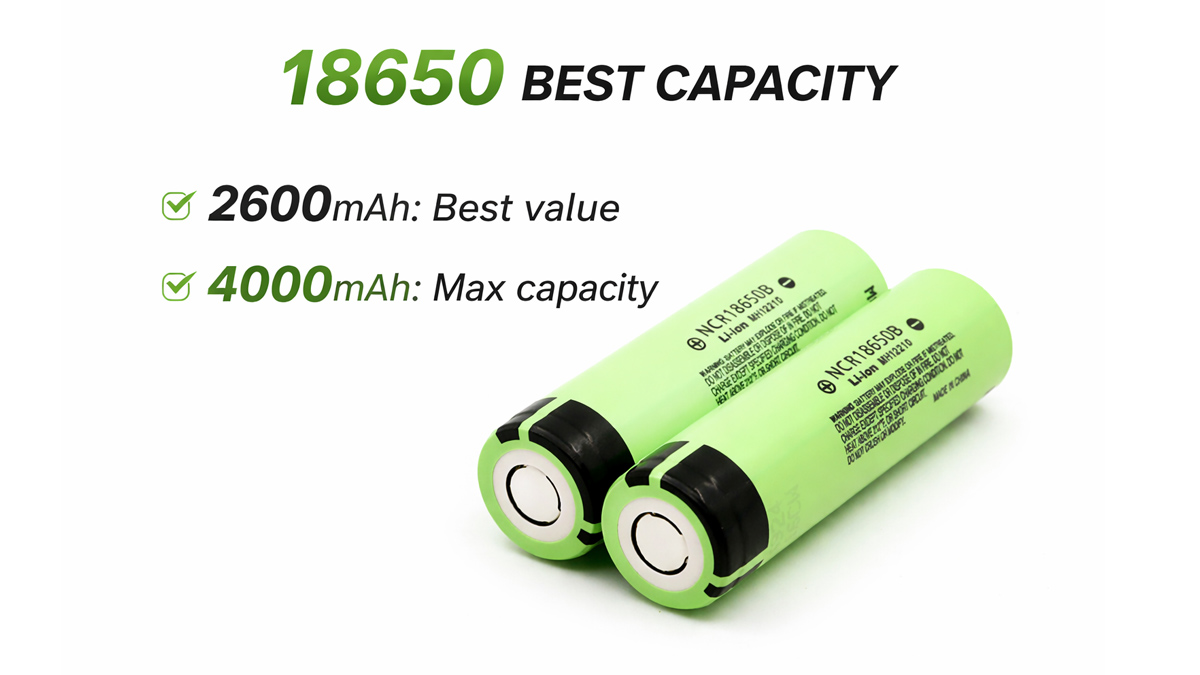

Capacity
Capacity (measured in mAh) indicates how much charge a 18650 battery can store and deliver. It directly affects how long a device can run on a single charge. Battery capacity cannot be calculated accurately by simple tools. It must be measured using a battery analyzer or capacity tester through controlled charge–discharge testing. A standard multimeter cannot measure capacity, as it only reads voltage or current.
• Capacity degradation
Capacity degradation refers to the gradual loss of battery capacity as the number of charge–discharge cycles increases. This is a normal aging process and does not necessarily indicate a defect in the battery. Over time, all 18650 cells will experience reduced capacity and shorter runtime.
• Cpacity Range
The minimum capacity of 18650 cells varies widely depending on design and application, but high-energy models today typically reach around 3500–3800mAh, with some manufacturers advertising up to 4000mAh nominal capacity.
Charging
Charging a 18650 battery requires proper voltage and current control to ensure safety and long lifespan. Most 18650 cells use a constant current–constant voltage (CC–CV) charging method, typically charging up to 4.2V with a controlled current. Using the correct charger is essential, and understanding best practices—such as avoiding overcharging, charging at appropriate temperatures, and selecting the right current—can significantly improve battery performance. For a more detailed explanation of safe methods and charging guidelines, see this 18650 charging guide. Improper charging, such as using incompatible chargers or exceeding recommended limits, can lead to overheating, capacity loss, or safety risks.

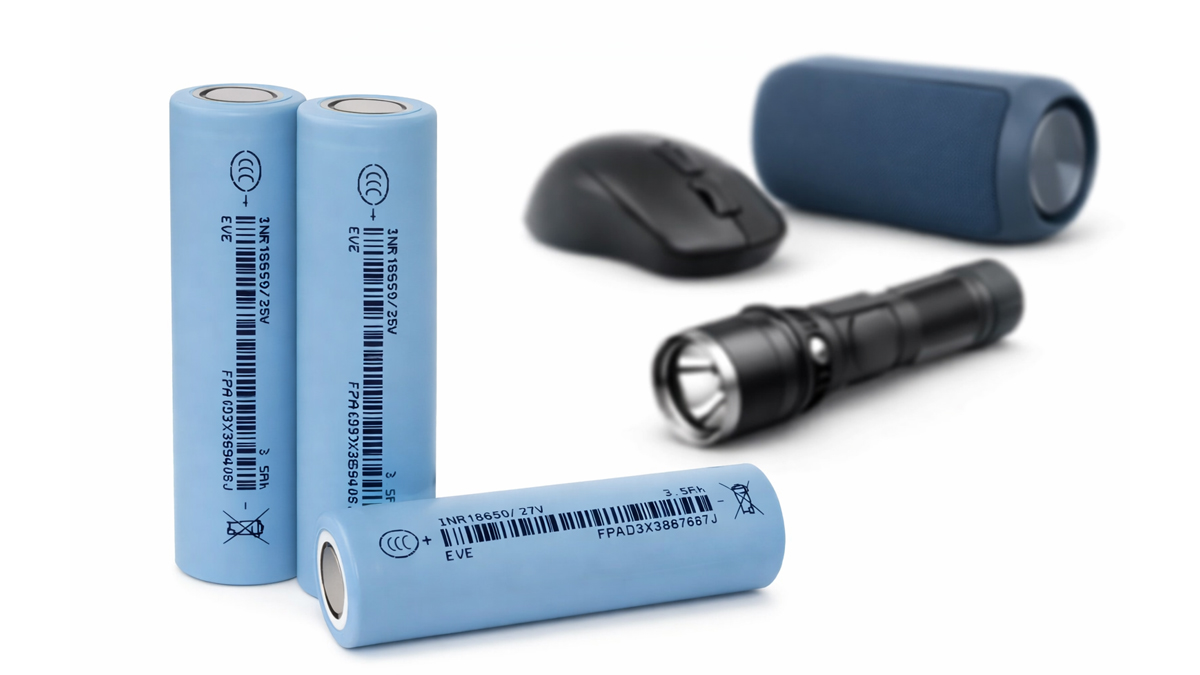

Discharging
Discharging is the process by which a 18650 battery releases stored energy to power a device. In real applications, discharging occurs when the battery is installed in a product and the device is operating. Outside of products, a 18650 battery can also be discharged using dedicated battery testing or discharge equipment to measure performance such as capacity and discharge rate.
• Over-Discharging
Over-discharging refers to discharging a 18650 battery below its safe minimum voltage limit (typically around 2.5V–3.0V depending on the cell). When a battery is over-discharged:
- Internal chemical structure becomes unstable
- Capacity loss becomes permanent
- The battery may fail to recharge or become unsafe
For this reason, most battery packs include a BMS (Battery Management System) to prevent over-discharge.
• Self-Discharge
Self-discharge is the natural loss of charge when a battery is not in use. For high-quality 18650 cells, self-discharge is extremely low and often negligible. In standalone storage (not assembled into a pack), a good 18650 battery may lose less than 10mV over a year, meaning its voltage remains very stable. When a 18650 battery is installed in a device or battery pack, the observed power loss is often higher due to standby consumption from the electronics, even when the device is turned off. This type of energy loss comes from the product itself—not from the battery’s internal self-discharge.

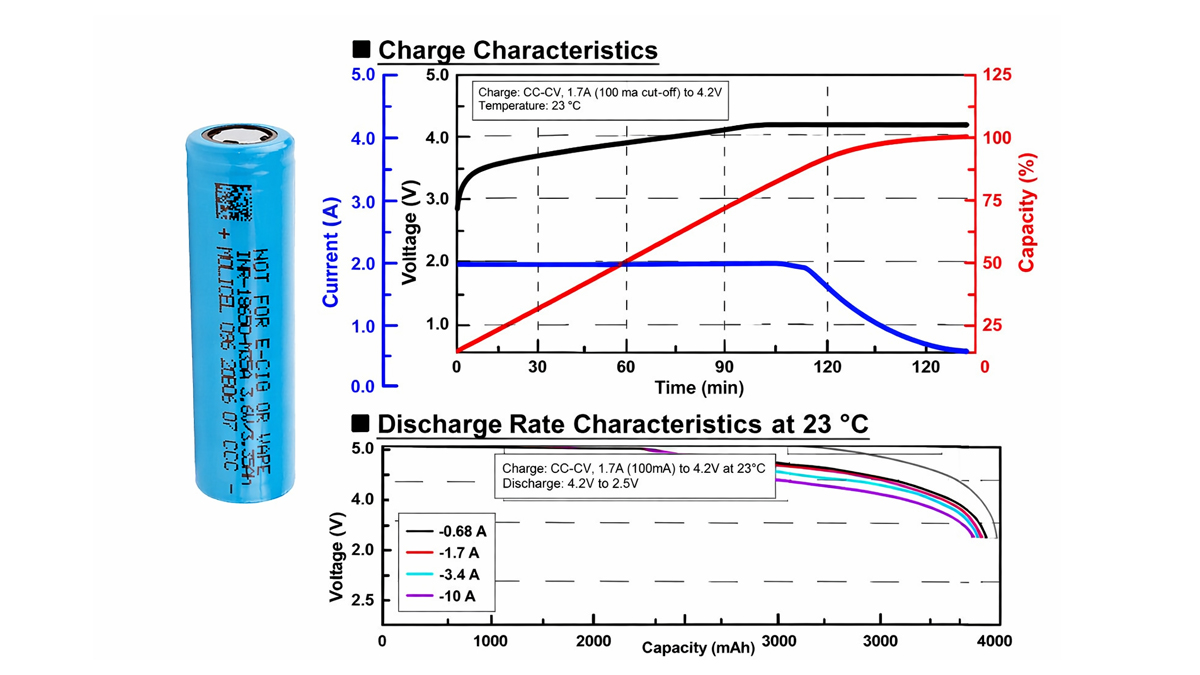

Current
Current (measured in amps, A) describes how fast an 18650 battery is charged or discharged. Every 18650 cell has rated current limits. If current exceeds those limits, the battery can overheat, suffer permanent damage, and in severe cases create serious safety risks.
In practice, 18650 current is usually discussed in three categories: charging current, continuous discharge current, and peak (pulse) current.
• Charging Current
Charging current is the current flowing into the battery during charging. Most 18650 cells specify a maximum charge rate such as 0.5C or 1C depending on the chemistry and design. Charging above the recommended limit can increase heat, accelerate aging, and raise the risk of failure.
• Continuous Discharge Current
Continuous discharge current is the maximum current the cell can deliver continuously without exceeding safe temperature or voltage limits. This rating varies widely by 18650 model and can range from about 1C, 3C, 5C, 10C, 15C, and sometimes higher for high-power cells.
C-rate (C) is a multiplier based on the cell’s capacity:
- 1C means the current equals the cell capacity (in Ah)
- 2C means twice that current, and so on
Example: For a 2500mAh (2.5Ah) 18650 cell:
- 1C = 2.5A (2500mA)
- 2C = 5.0A (5000mA)
- 3C = 7.5A (7500mA)
• Peak Current
Peak (pulse) current is a short burst current, typically allowed only for a very brief duration (often under 3 seconds, depending on the cell specification). Peak current is commonly 3–5× the continuous discharge rating, and in some cases can reach 10C or higher. However, the higher the peak current, the shorter the allowed duration must be. If a high peak current is applied for too long, the cell can overheat, degrade rapidly, or become unsafe.
• Hazards Of Exceeding current limits
When charging or discharging current exceeds the cell’s limit, the battery may:
- Heat up rapidly
- Suffer voltage sag and capacity loss
- Age much faster
- Vent or fail, and in extreme cases pose fire or explosion risk
For safe use, always follow the current ratings in the cell datasheet and ensure the pack has proper protection (such as a BMS and appropriate fusing).

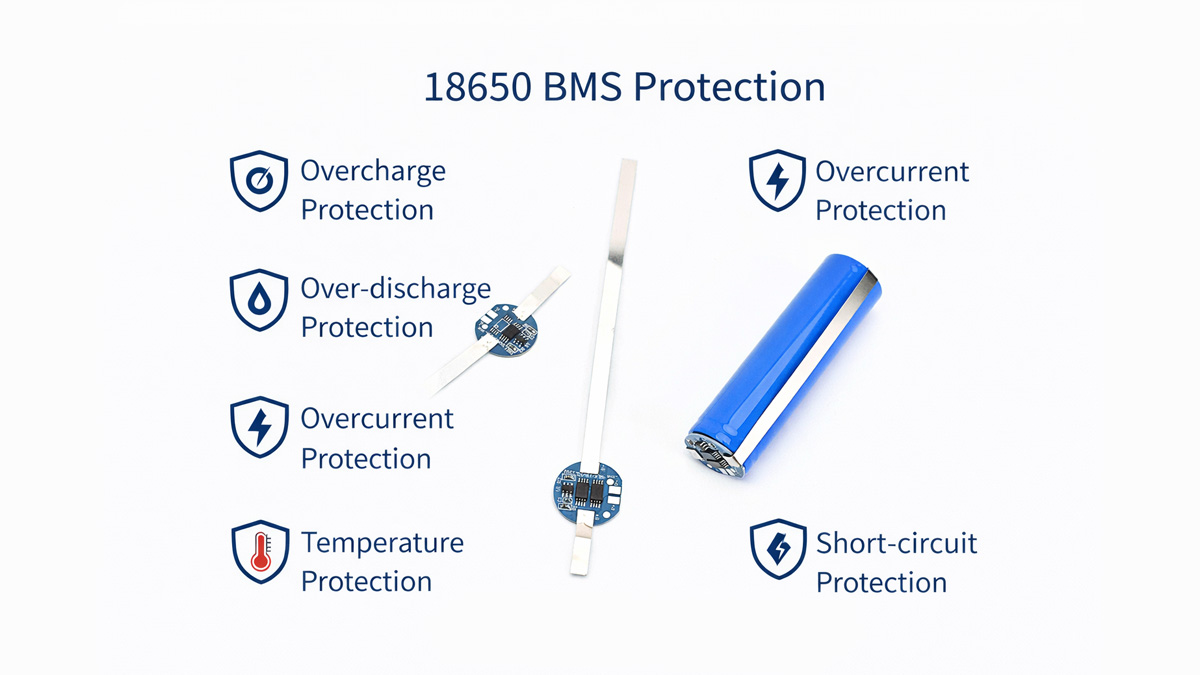

BMS Protection
A BMS (Battery Management System) or protection board is an electronic circuit used to protect 18650 cells (or 18650 battery packs) by keeping voltage, current, and temperature within safe limits. In single-cell applications, it is often a small PCM/protection circuit attached to the cell. In multi-cell packs, the BMS manages and protects the entire battery pack.
• Protection Board Functions
A typical 18650 protection board helps prevent common battery failures by providing:
- Overcharge protection: stops charging if voltage exceeds the safe limit
- Over-discharge protection: disconnects the load if voltage drops too low
- Overcurrent protection: limits excessive discharge current
- Short-circuit protection: quickly cuts off power during a short
- Temperature protection (if supported): reduces risk from overheating
These protections reduce the chance of damage, swelling, overheating, and other safety issues.
• What Is A Flat Top 18650 Battery
Flat top and button top describe the shape of the 18650 battery’s positive terminal, not whether the cell is protected. A flat top 18650 has a flat positive end and is commonly used in battery packs (often spot-welded), and many flat-top cells are unprotected, but flat top does not automatically mean “no protection board.” A button top 18650 has a raised positive terminal and is often used as a flashlight battery because the protruding contact fits more devices. Button top cells may be protected or unprotected—you need to check the specific product, since the protection circuit (if present) is usually added to the cell and can be identified by extra length, visible wrapping details, or labeling.
18650 Battery Selection And Replacement
Choosing the right 18650 battery or replacing an existing one depends on factors such as capacity, discharge current, voltage compatibility, and application requirements. In many cases, replacing a battery with the same model is the safest option, while in other situations users may consider alternatives like different capacities or even other cell sizes if the device allows it. Understanding these differences is important to ensure both performance and safety, especially when selecting between high-capacity and high-discharge cells for different uses. You can learn more about how to choose the right battery and suitable replacement options in this 18650 battery selection and replacement guide, which covers practical considerations in more detail.
Using an incompatible battery or incorrect specifications can lead to reduced performance, overheating, or potential safety risks, so careful selection is always recommended.
Lifespan And Shelf Life
The lifespan of a 18650 battery includes cycle life (how many charge–discharge cycles it can complete), service life (how many years it can be used), and shelf life (how long it can be stored without use).

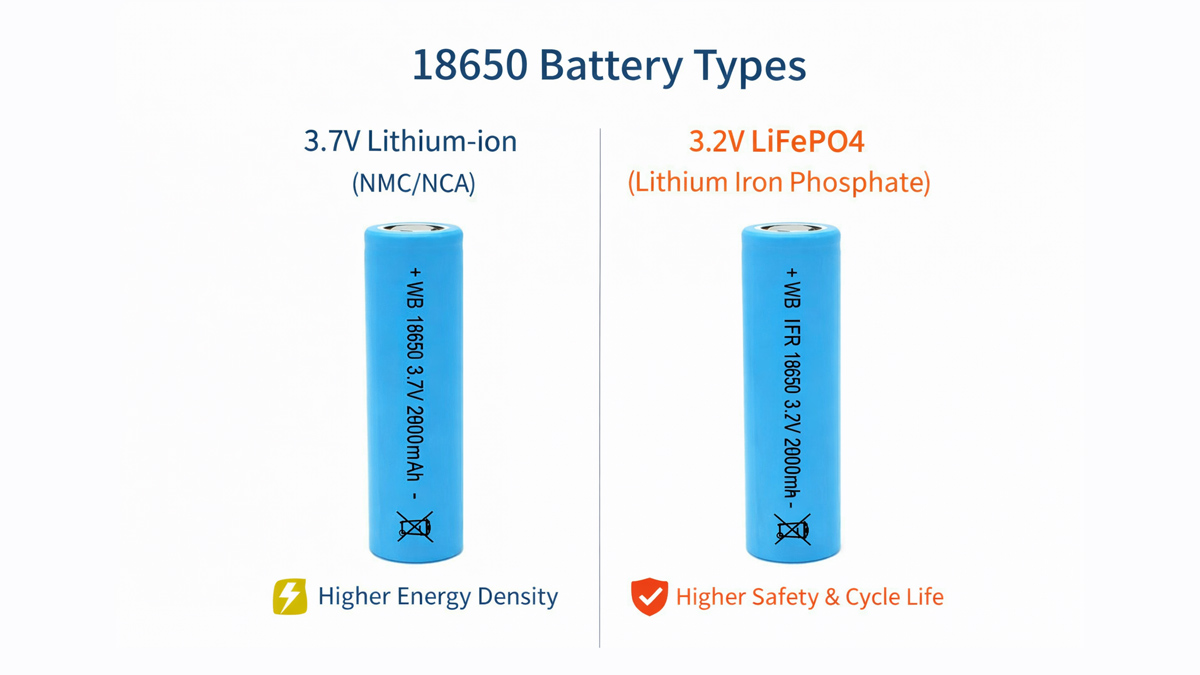

- 3.7V lithium-ion (NMC/NCA) 18650 batteries typically provide 300–800 cycles. In real use, they usually last about 2–5 years depending on usage and conditions. When stored properly, the shelf life is around 3–5 years, although capacity will gradually decrease over time.
- 3.2V LiFePO4 18650 batteries have a much longer lifespan, typically 1500–3000+ cycles. They can last around 5–10 years or more in normal use. Their shelf life is also longer, usually 5–10 years, due to their more stable chemistry.
Temperature
The temperature range of an 18650 battery is the safe and recommended minimum-to-maximum temperature window in which the cell can be charged, discharged (operated), and stored without causing abnormal performance loss, accelerated aging, or safety risks. Because 18650 cells are lithium-ion batteries, their internal electrochemical reactions are highly temperature-dependent.

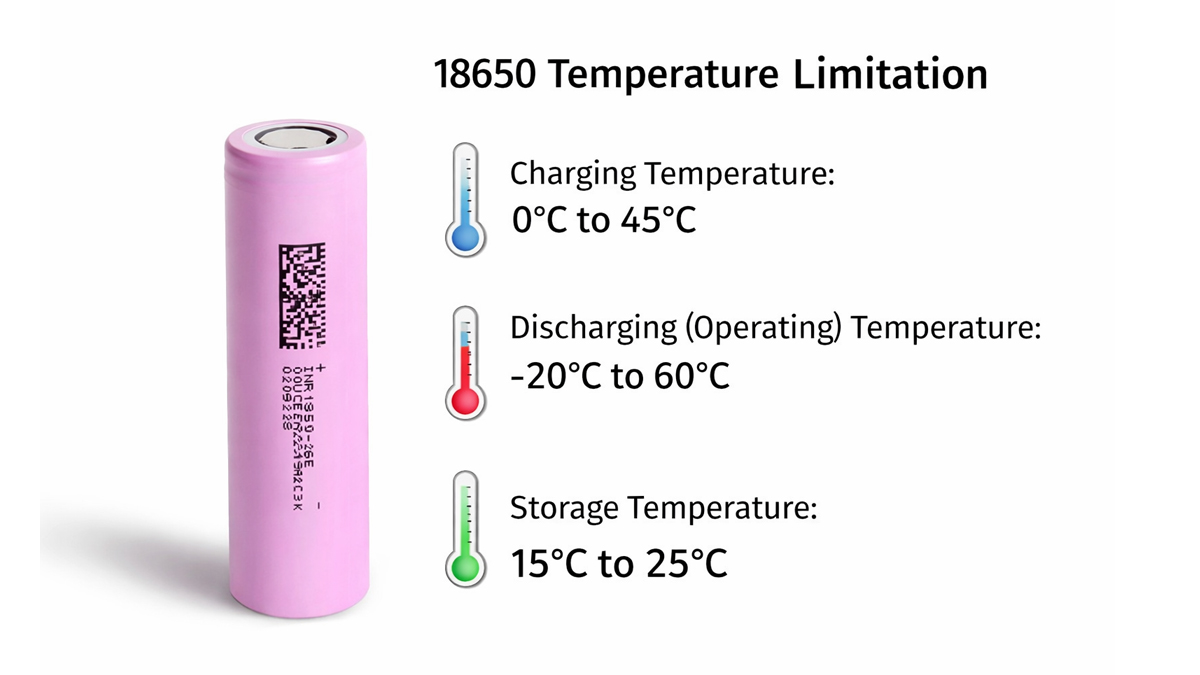

• Temperature Limitation
18650 batteries must operate within specific temperature limits to ensure safe performance and long lifespan. These limits vary depending on whether the battery is charging, discharging, or in storage.
- Charging Temperature: Typically 0°C to 45°C. Charging below 0°C can cause lithium plating and permanent damage.
- Discharging (Operating) Temperature: Usually -20°C to 60°C. Low temperatures reduce performance, while high temperatures increase aging and safety risk.
- Storage Temperature: ideal range of 15°C to 25°C for long-term storage.
Keeping the battery within these temperature ranges helps prevent degradation, overheating, and potential safety hazards.
• Low Temperature Effects
- Higher internal resistance → larger voltage sag and weaker power output
- Lower usable capacity → noticeably shorter runtime, especially under load
- Cold charging risk (especially below 0°C) → lithium plating can occur, causing permanent damage and increasing safety risk over time
• High Temperature Effects
- Faster aging → quicker capacity fade and shorter cycle life
- More side reactions → gas generation, swelling, increased self-discharge
- Higher safety risk → overheating, venting, separator damage, and in extreme cases thermal runaway
18650 Battery Pack Assembly
18650 batteries are often combined into packs to meet specific voltage and capacity requirements for different applications. Cells are typically connected in series to increase voltage or in parallel to increase capacity, and proper design is essential to ensure performance and safety. Factors such as cell matching, connection methods, and protection systems all play an important role in reliable operation. For a more detailed overview of design considerations and safe assembly practices, you can explore this 18650 battery pack assembly guide.
Improper assembly or mismatched cells can lead to imbalance, overheating, and reduced lifespan, which is why careful planning and appropriate protection are critical.
Problems And Troubleshooting
18650 batteries may develop issues over time, such as not charging, reduced capacity, voltage drop, or overheating. These problems are often related to factors like aging, improper charging, excessive current, or poor storage conditions. In most cases, the key is to identify whether the issue comes from the battery itself, the charger, or the device. Understanding common symptoms and how to safely check battery condition can help prevent further damage and ensure safe use. For a more detailed breakdown of common issues and safe troubleshooting methods, you can refer to this 18650 battery troubleshooting guide. In general, if a battery shows signs of swelling, leakage, or cannot hold charge, it should be replaced rather than reused to avoid safety risks.

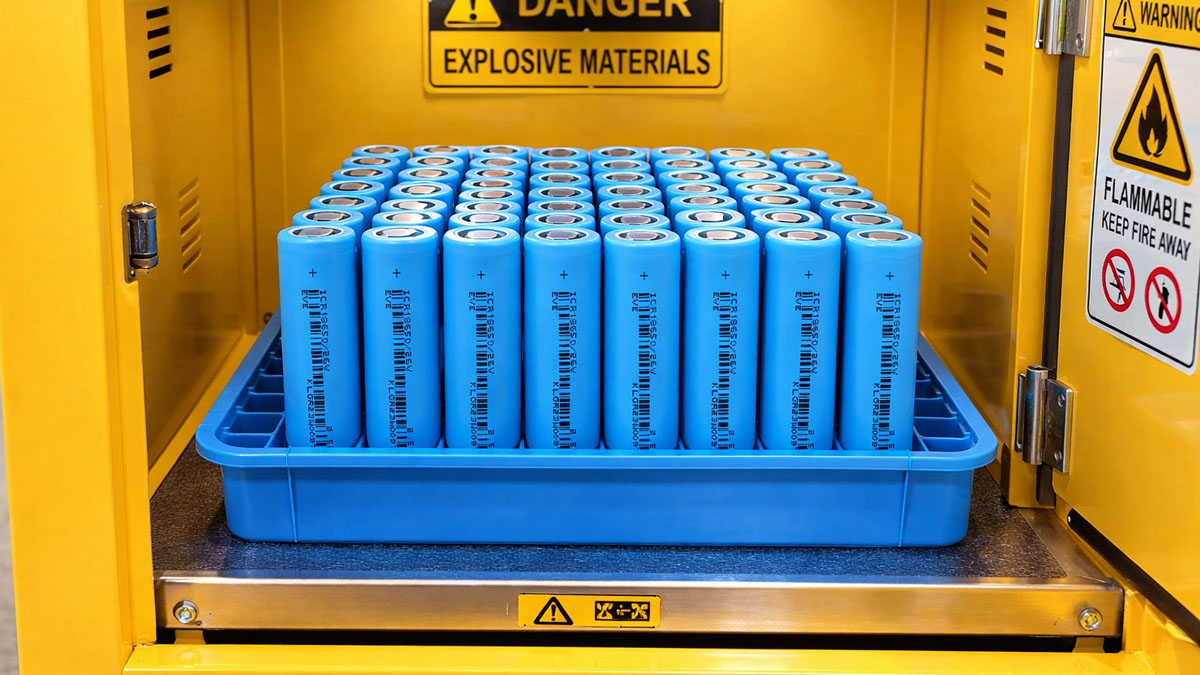

Safety
18650 batteries are generally safe when used correctly, but they can pose serious risks such as fire or explosion if misused. The root cause of these risks lies in the battery’s internal chemical materials and high energy density. If the internal structure becomes unstable—due to damage, short circuit, overcharge, or overheating—the battery may enter thermal runaway, leading to fire or explosion. Even high-quality 18650 cells can become dangerous if they are improperly used, stored, or handled, as safety depends not only on the cell itself but also on how it is applied.
• Are 18650 Batteries Safe
18650 batteries are generally safe when used correctly and within their specified limits. Most high-quality cells are designed with stable chemistry and are often used with protection systems such as BMS (battery management systems). However, safety depends on proper handling. Misuse—such as overcharging, short circuits, physical damage, or exposure to high temperatures—can increase risk. When used and stored properly, 18650 batteries are considered safe for everyday applications.
• Can 18650 Batteries Explode Or Get Fire
18650 batteries can explode or catch fire, but this typically occurs only under abnormal conditions.
The main cause is thermal runaway, which can be triggered by:
- Overcharging or over-discharging
- Short circuits
- Physical damage
- Overheating
When the internal temperature rises uncontrollably, the battery may vent, ignite, or in rare cases explode. To reduce risk, always use proper chargers, avoid damage, and follow recommended safety guidelines.
• Can 18650 Batteries Be Taken On Airplanes
18650 lithium batteries are allowed on airplanes, but only in carry-on luggage and never in checked baggage. In most cases, a single 18650 battery is well below 100Wh, so it can be carried without approval. Batteries between 100Wh and 160Wh require airline approval, while those above 160Wh are not allowed.
• Mixing Different 18650 Batteries Is Unsafe
Using 18650 cells of different brands, capacities, or conditions together is dangerous. Mismatched cells can lead to uneven charging and discharging, which increases the risk of overheating, damage, and failure. For battery packs, only matched cells with the same specifications should be used.
• Unprotected 18650 Batteries Carry Higher Risk
Unprotected 18650 batteries (without a protection circuit) have a higher risk because they lack safeguards against overcharge, over-discharge, and short circuit. They should be handled carefully and never stored loosely, as accidental contact between terminals can cause a short circuit. However, when properly integrated into a device with built-in protection, they can be used safely under normal conditions.

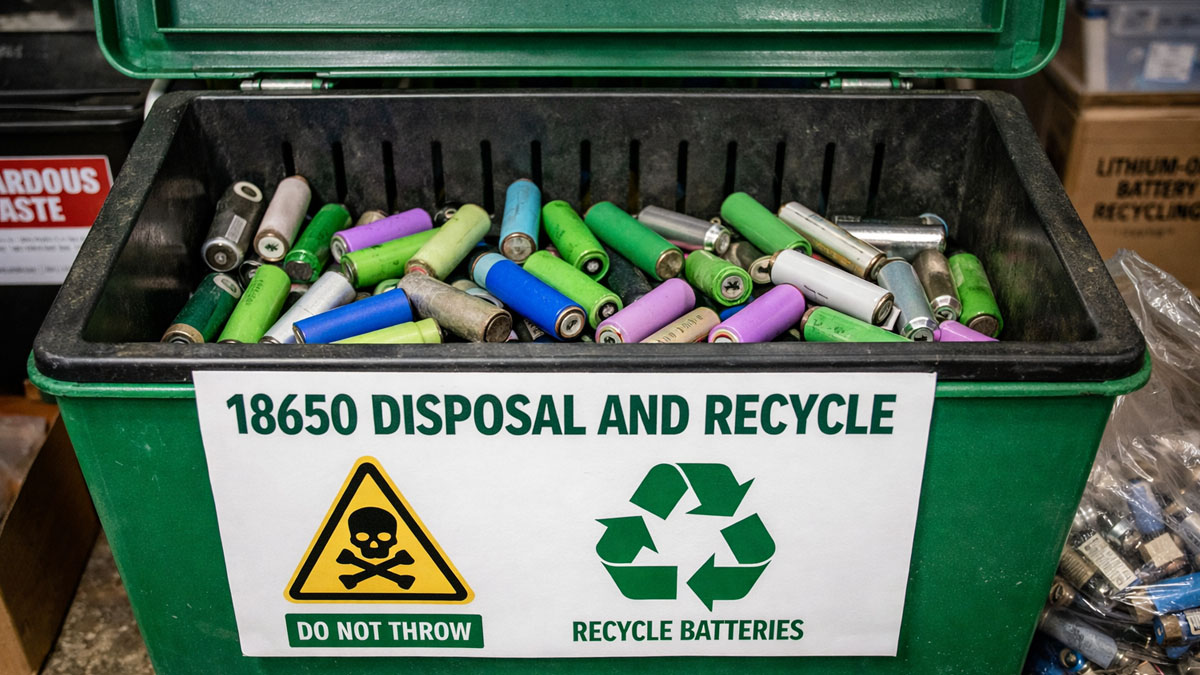

Disposal And Recycle
18650 batteries should never be thrown away with regular household waste. Because they contain lithium, heavy metals, and flammable materials, improper disposal can lead to environmental pollution, fire risk, and safety hazards if the battery is damaged or short-circuited.
• How To Dispose Of 18650 Batteries Safely
- Before disposal, take basic precautions to reduce risk:
- Do not crush or damage the battery
- Cover the terminals with tape to prevent short circuits
- Store the battery in a non-conductive container until disposal
• Where To Recycle 18650 Batteries
18650 batteries should be taken to authorized battery recycling facilities or collection points. Common options include:
- Local recycling centers or hazardous waste facilities
- Electronics stores that accept used batteries
- Community battery collection programs
These facilities are equipped to handle lithium batteries safely and ensure proper recycling of materials.
Conclusion
18650 batteries are widely used because they offer a strong balance of capacity, size, performance, and versatility. Understanding key aspects such as voltage, capacity, discharge rate, lifespan, and safety helps ensure they are used correctly and efficiently. While 18650 cells are reliable, their performance and safety depend heavily on proper charging, correct current limits, suitable temperature conditions, and safe handling. Misuse—such as overcharging, deep discharge, or short circuits—can lead to reduced lifespan or safety risks. By following basic guidelines and using appropriate protection systems, 18650 batteries can provide stable performance, long service life, and safe operation across a wide range of applications.
FAQ
What is a 18650 battery?

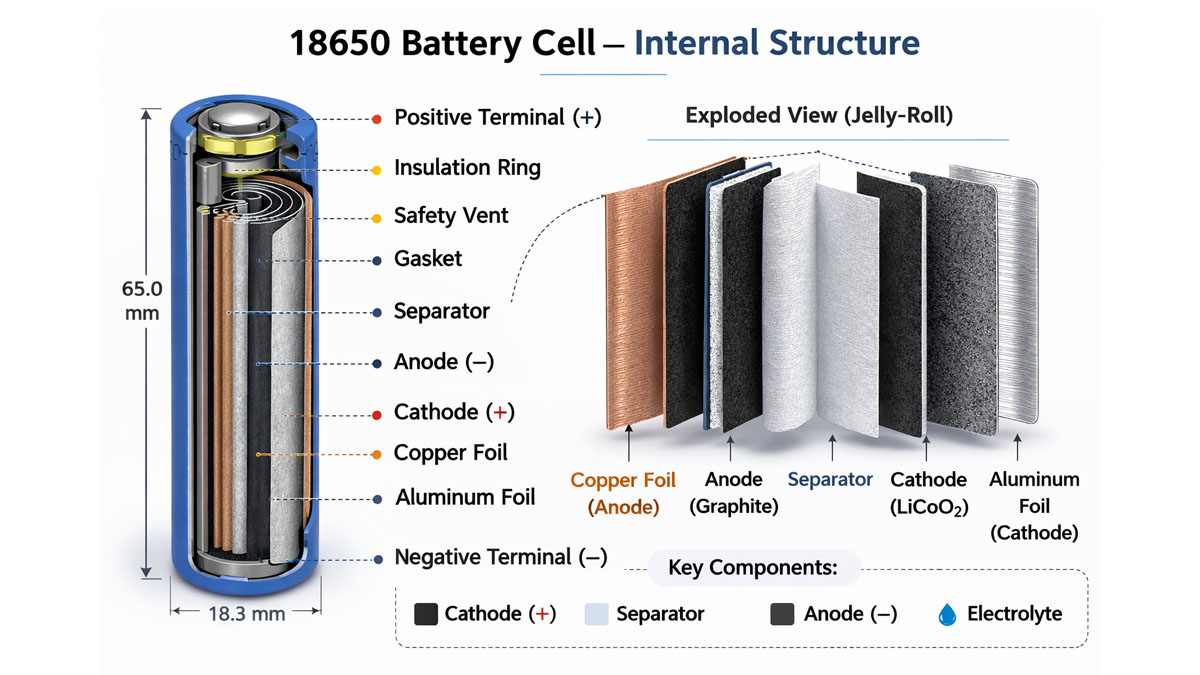

A 18650 battery is a cylindrical lithium-ion cell measuring 18mm in diameter and 65mm in length. It is widely used in electronics, power tools, and battery packs due to its high energy density and standard size.
What is the voltage of an 18650 battery?
A typical 18650 battery has a nominal voltage of 3.6V–3.7V, reaches 4.2V when fully charged, and should not be discharged below about 2.5V–3.0V.
How long do 18650 batteries last?
18650 batteries usually last 300–800 cycles (2–5 years) for lithium-ion and 1500–3000+ cycles (5–10 years) for LiFePO4, depending on usage and conditions.
What are the dimensions of a 18650 battery?
A standard 18650 battery measures 18mm in diameter and 65mm in height, with a typical weight of about 40–50g.
Are 18650 batteries allowed on planes?
Yes, 18650 batteries are allowed on airplanes, but they must be carried in hand luggage only and not in checked baggage. Proper insulation is required to prevent short circuits.
Are 18650 batteries dangerous?
18650 batteries are generally safe when used properly, but misuse such as overcharging, short circuits, or physical damage can lead to overheating or fire risk.
Can 18650 batteries overcharge?
Yes, 18650 batteries can overcharge if not properly protected. Using a compatible charger or a battery with protection/BMS prevents overcharging and ensures safe operation.
How to check 18650 battery capacity?
18650 battery capacity must be tested using a battery analyzer or capacity tester. A standard multimeter cannot measure capacity accurately.
